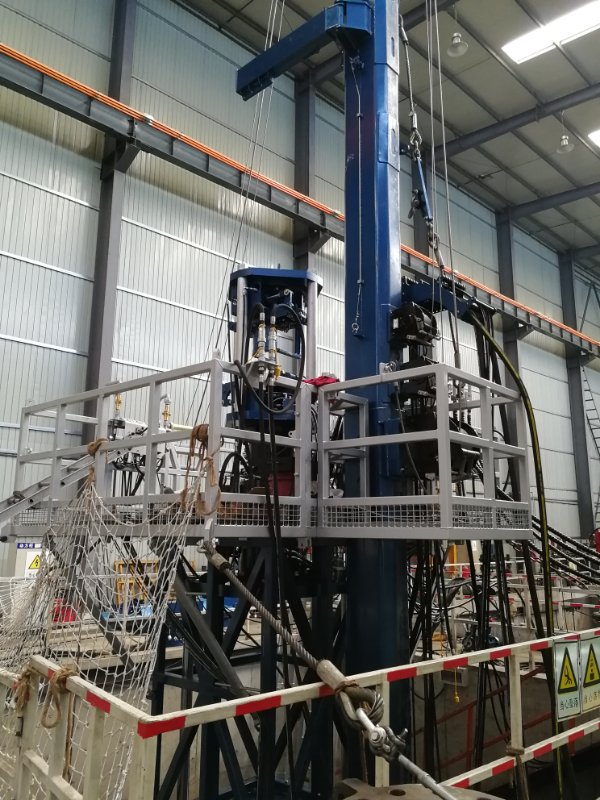

340K(11＂-10M) rig Snubbing UnitAbstract：
340K rig snubbing unit includes the following main components:Power Jack, Slip sets, Power rotary, Working basket, Gin pole,Tong arm, Stripping annular BOP, Stripping ram preventer, Equalizing spool
Details
Details:
340K rig snubbing unit includes the following main components:
| Power Jack: | Hydraulic power jack with 4 cylinders |
| Slip sets: | Travel heavy slip: 1 set |
| Travel snubbing slip: 1 set | |
| Stationary heavy slip: 1 set | |
| Stationary snubbing slip: 1 set | |
| Power rotary: | Hydraulic Power rotary |
| Working basket | Upper basket: 1 ea. |
| Lower basket: 1 ea. | |
| Gin pole: | 1 ea. |
| tong arm | 1 ea. |
| Stripping annular BOP | 11"- 5K annular BOP: 1 ea. |
| Stripping ram preventer | Upper ram: 11"- 10K, 1 ea. |
| Lower ram: 11"- 10K, 1 ea. | |
| Equalizing spool | 11"- 10K |
Equipment Specifications:
Power Jack
| 4 hydraulic cylinders | |
| Max. lifting force： | 340,000 lb [154 tons] |
| Max. snubbing force： | 190,000 lb [ 85.8 tons] |
| Stroke length： | 120″ [3.048m] |
| Bore size： | 11” [280mm] |
Slip sets
| 4 slip sets | |
| Pipe size range： | 1”～8 5/8”(25.4mm~219.1mm) |
| Max. load： | 340,000 lb (154tons) |
| Bore size： | 11 1/16” [281mm] |
| Hydraulic operated | |
Power Rotary
| Max. torque | 13,000 ft.lbs |
| Max. speed | 108rpm |
| Bore size: | 11 1/8” (282.6 mm) |
Annular BOP
| QTY: | 1 ea. |
| Bore size： | 11” [ 280mm] |
| Pressure rating： | 5000psi(35MPa) |
| Element material： | Natural rubber |
| NACE MR01-75 compliance | Yes |
Ram preventer
| Upper Ram Preventer | 1 ea. SRC type |
| Lower Ram Preventer | 1 ea. SRC type |
| Bore size： | 11” [ 280mm] |
| Pressure rating： | 10000psi(70MPa) |
| Pipe range： | 2 3/8”~7 5/8”(60.3mm~193.7mm) |
| NACE MR01-75 compliance | Yes |
Upper workbasket
| Extended Dimensions： | |
| Length： | 166.5”（4.23m） |
| Width： | 106.3”（2.7m）This part can be disassembled. |
| Height： | 45”（1.15m） |
Lower workbasket
| Dimensions： | |
| Length： | 135.4”（3.44m） |
| Width： | 81.1”（2.06m） |
| Height： | 47.4”（1.205m） |
Tubing handling gin pole
| A 2 section telescoping gin pole | |
| Retracted Length： | 41.3ft (12.6m) |
| Extended height from slip to sheave： | 57.4ft (17.5m) |
| Max. load： | 8820 lbs (4t) |
| Counter-Balance winches： | Qty: 2 ea. |
| Max.load:1500 lbs (681kgs) | |
| With brake system | |
| Main winch： | Qty: 1 ea. |
| Max.load:8820 lbs (4t) | |
| With brake system | |
| Tong Arm | Installed on the lower section of the gin pole |
Power Pack
| Type: | Skid mount |
| Diesel engine: | Cat C-13 Grade C, 440HP |
| Hydraulic pumps: | 9ea. Hydraulic pumps |
| Accumulator bottles: | 10 ea. 11 gal low-temp bottles |
| Emergency Power storage: | 2 ea. High pressure Nitrogen bottle |
| Hydraulic Reservoir: | Capacity: 502 gal (1900 Liters) |
