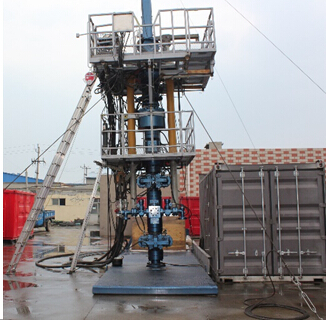

TT150K rigless snubbing unit can be used as both a stand-alone snubbing unit or rig assist snubbing unit to work with a conventional work-over rig.

Power Jack

2 hydraulic cylinders
Max. lifting force：	142,000 lb [64.55t]
Max. snubbing force：	85,000 lb [38.56t]
Stroke length：	138″ [3.5m]
Bore size：	7-1/16” [180mm]


Slip sets

4 hydraulic-operated slip sets
Pipe size range：	1”～5-1/2”(25.4mm~139.7mm)
Max. load：	240,000 lb (62 tons)
Bore size：	7-1/16” [180mm]
Hydraulic operated


Power Rotary

Max. torque	3300 ft.lb,
Max. speed	100 rpm
Bore size:	7-1/16” (180 mm)


Annular BOP

QTY:	1 ea.
Bore size：	7-1/16” [ 180mm]
Pressure rating：	5000psi(35MPa)
Element material：	Natural rubber
NACE MR01-75 compliance	Yes


Ram preventer

Upper Ram Preventer	1 ea. QRC type
Lower Ram Preventer	1 ea. QRC type
Bore size：	7-1/16” [ 180mm]
Pressure rating：	5000psi(35MPa)
Pipe range：	1”~5-1/2”(25.4mm~139.7mm)
NACE MR01-75 compliance	Yes


Upper work basket

Working area：

96.5” (2.45m) x 71” (1.80m)


Lower workbasket

Working area：：

75” (1.90m) x 72” (1.83m)


Tubing handling gin pole

A 3 section telescoping gin pole
Retracted length	22ft (6.70m)
Extended height from slip to sheave：	46 ft (14 m)
Max. load：	2500lbs (1134kg)
Counter-Balance winches：	Qty:2 ea.
	Max. Load: 500lbs (226.5kgs)
	With brake system



Tong ram and arm

Type：	Hydraulic powered telescope
Max. Stroke：	100”(2540mm)
Max. load：	2,500 lbs (1,134 kg)

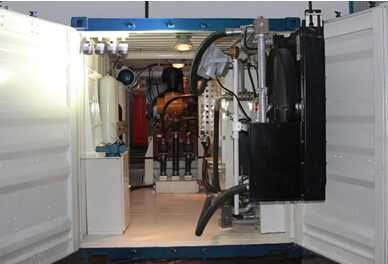

Power Pack

Housing:	20 ft sea container
Diesel engine:	Cat C-13 Grade C, 440HP
Hydraulic pumps:	7ea. Hydraulic pumps
Accumulator bottles:	5 ea. 11 gal low-temp bottles
Emergency Power storage:	1 ea. High pressure Nitrogen bottle
Hydraulic Reservoir:	Capacity: 450gal (1703 Liters)
